These radial ball bearings are designed for high-speed, low-load general-purpose applications. They feature a single row of ball rollers to handle radial loads and can accommodate limited axial movement.
| Brand | MOS | Cage Material | Steel |
| Bearing Industry Number | 6701 | Closure | Customizable |
| Bore Diameter | 12 mm | Number of Rows | 1 |
| Bore Diameter Tolerance | +0/-0.007 mm | Maximum Temperature | 100°C/212°F (Customizable) |
| Outside Diameter | 18 mm | Minimum Temperature | -30°C/-22 °F (Customizable) |
| Outside Diameter Tolerance | +0/-0.008 mm | Dynamic Radial Load Capacity | 935 N |
| Outer Ring Width | 4 mm | Static Radial Load Capacity | 528 N |
| Fillet Radius | 0.2 mm | Maximum Speed | 30000/36000 (Grease/Oil) |
| Ring Material | AISI 52100 | Lubricant Material | Grease or Oil |
| Ball Material | AISI 52100 | ABEC Rating | 3 |
About this item

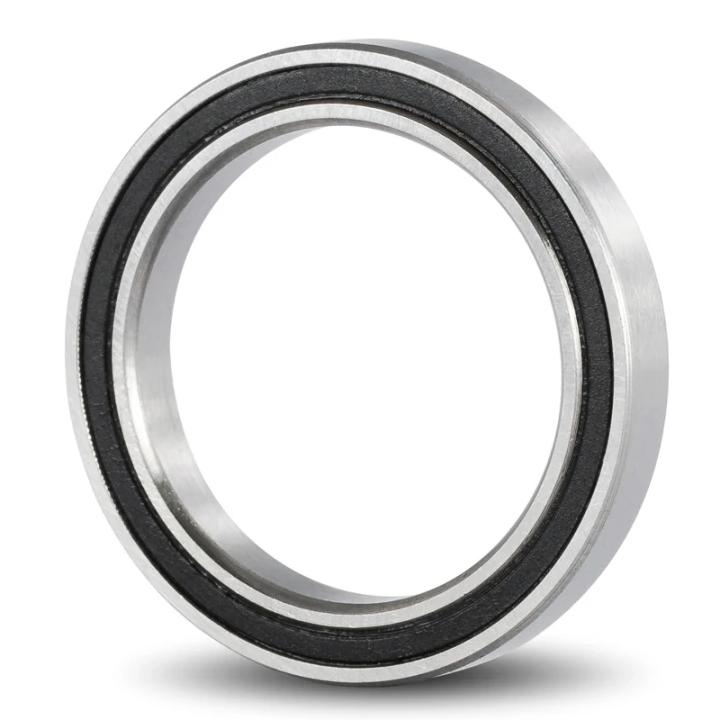

6701-2RS (I.D.=12mm, O.D.=18mm, Thickness=4mm)
6701rs bearings are sealed on BOTH SIDES to keep lubricant in
Chromium Steel long-life bearings, smooth and low noise
ABEC Tolerance 3 (P6), Z1 Noise Level for most general use
Static load rating of 1664 newtons and dynamic load rating of 3960 newtons
