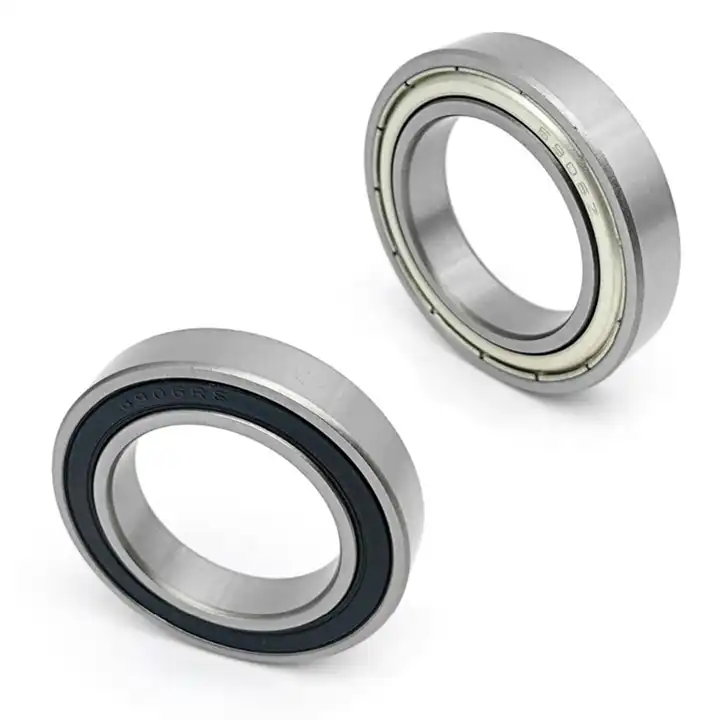

These radial ball bearings are designed for high-speed, low-load general-purpose applications. They feature a single row of ball rollers to handle radial loads and can accommodate limited axial movement.
| Brand | MOS | Cage Material | Steel |
| Bearing Industry Number | 6807 | Closure | Customizable |
| Bore Diameter | 35 mm | Number of Rows | 1 |
| Bore Diameter Tolerance | +0/-0.010 mm | Maximum Temperature | 100°C/212°F (Customizable) |
| Outside Diameter | 47 mm | Minimum Temperature | -30°C/-22 °F (Customizable) |
| Outside Diameter Tolerance | +0/-0.009 mm | Dynamic Radial Load Capacity | 4310 N |
| Outer Ring Width | 7 mm | Static Radial Load Capacity | 3610 N |
| Fillet Radius | 0.3 mm | Maximum Speed | 11000/14000 (Grease/Oil) |
| Ring Material | AISI 52100 | Lubricant Material | Grease or Oil |
| Ball Material | AISI 52100 | ABEC Rating | 3 |
